CH-100H electric motor hydraulic pump operated hole punching machine
CH-100H electric motor hydraulic pump operated hole punching machine, for channel steel.
CH-100H electric motor hydraulic pump operated hole punching machine, for punching in channel steel, angle iron, I beams, and mild flat steel plates.
| Hydraulic hole punching force | 100 ton |
| Hole punching throat width | 135mm |
| Hole punch dies included with the machine unit | 22mm, 25mm, 28mm, 32mm. |
| Hole punch dies sizes range | 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 24mm, 26mm, 30mm, 35mm. |
| Punching capacity | Max 20mm thickness |
| Matching pump | M4103 double acting electric motor hydraulic pump. |

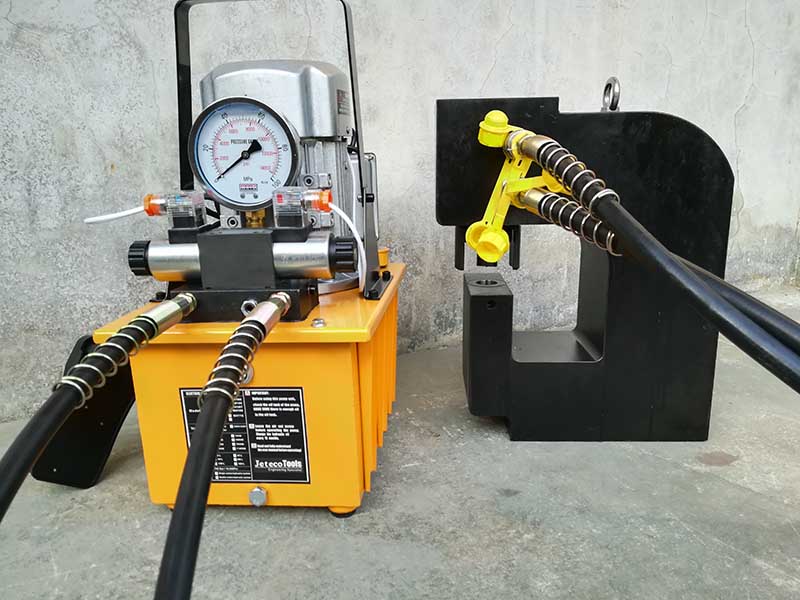

The electric motor hydraulic power pack with 10000Psi pressure, 2 pieces of hydraulic hose, remote cable with pedal control switch, can be suitable for AC power supply 220V-240V, 110V-120V, or 380V-415V.
The electric motor working rate can be 0.75KW, 1.5KW, 3KW, for optional.

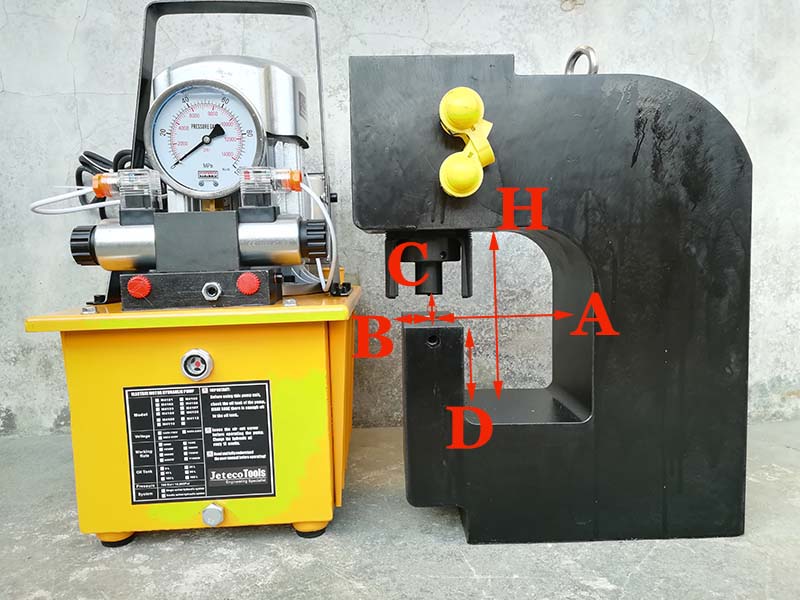

According customers' need, we can re-design the A, B, C, D, and H.
Hole punching capacity cover a wide range, round, oblong, square, star shape, and etc, we can make according customer's need.
To know more information about out machines, we would be happy to receive your inquiry and check the applications range.
