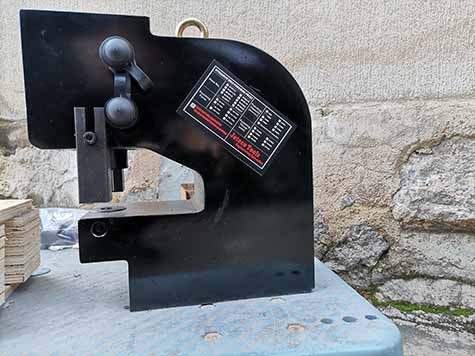

CH-100A hydraulic angle iron steel hole puncher

CH-100A hydraulic angle iron steel hole puncher, is designed for punching angle iron steel mostly, 100 ton hydraulic punching force, for max working thickness is 16mm.

135mm width of punching throat.

25mm of punching stroke.

Machine unit including hole punch dies sizes 22mm, 25mm, 28mm, 32mm.

Other sizes hole punches 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 24mm, 26mm, 30mm, 35mm for optional.

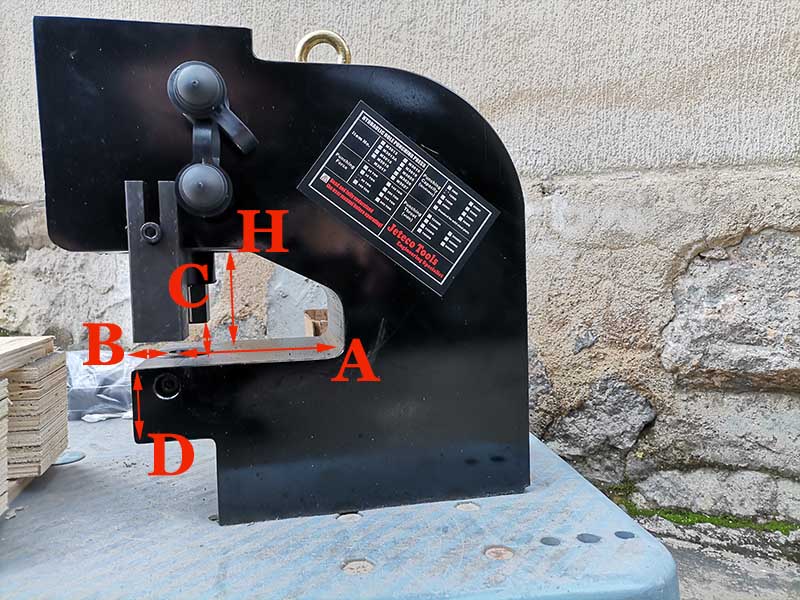

For special need, our engineers can desigh the machine according customer's requirements, re-design the A, B, C, D, and H.

This double acting hydraulic machine, required to be driven by an electric motor hydraulic pump.

If you possible like to have more information about our machines, you can feel free to send us an inquiry.
