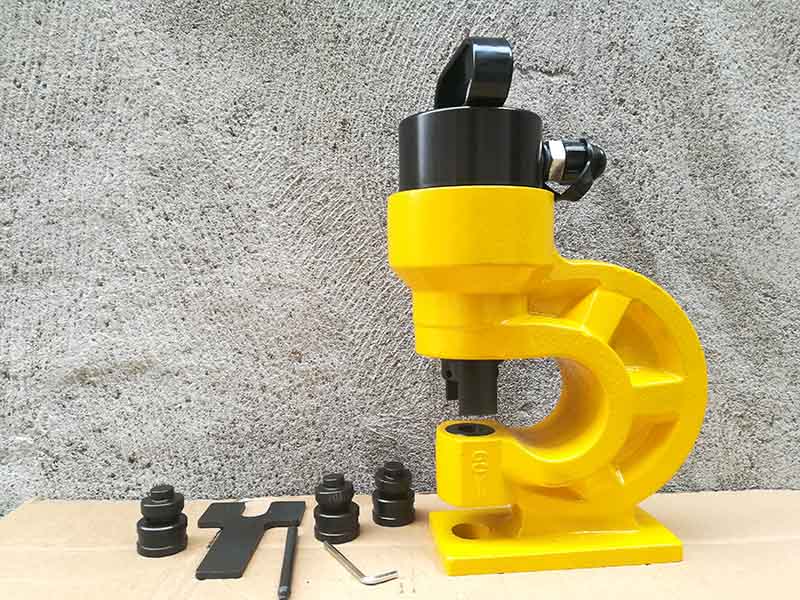

CH-60 hydraulic hole puncher

CH-60 hydraulic hole puncher, suitable for punching holes in steel plate, copper busbar, brass sheet.

The punching throat width is 95mm, punching force is 31 ton.

Suitable for punching mild steel plate max up to 6mm thickness, for copper busbar max up to 10mm thickness.

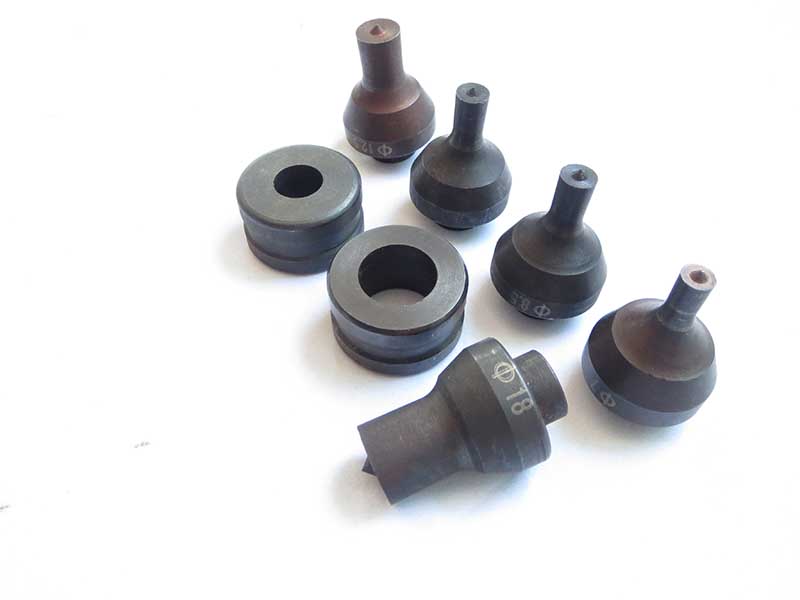

Punching hole dies sizes from 4.2mm to 22mm are available.

Standard setting of machine unit including 4 round sizes hole punches, 10.5mm, 13.8mm, 17mm, 20.5mm.

Other hole punch dies sizes 4.2mm, 4.5mm, 5mm, 5.5mm, 6mm, 6.5mm, ... up to 22mm are for optional.

Hole punches made by Cr40# steel material, processed by heat treatment, with super high hard quality.

This hole puncher need to be driven by hydraulic pump, M4117 hydraulic hand pump, or M4101 electric hydraulic pump, is good.
